PowMr Hybrid Inverter 6.2KW 120A MPPT 24V 48V To 230V
PowMr Hybrid Inverter 6.2KW 120A MPPT 24V 48V To 230V
Couldn't load pickup availability
Power your home with PowMr’s 6.2KW Hybrid Inverter, a reliable DC 24V/48V to 230V pure sine on-grid solution with 120A MPPT for EU stock, Images: https://ae01.alicdn.com/kf/S9d72da73b7b44b6aad3c63a19191ef604.jpg https://ae01.alicdn.com/kf/Sd7d6fada8cf24e648bac13645beec770A.jpg https://ae01.alicdn.com/kf/Sf39d17c203254b18ae509d1de0793f4bA.jpg https://ae01.alicdn.com/kf/S2042e845fab4463fa058214d6abc69e5z.jpg https://ae01.alicdn.com/kf/Sbe73877f16c14cfe9e708d2411c0b5bce.jpg https://ae01.alicdn.com/kf/S6e30978381344e2085afd9e8d80aa08bQ.jpg https://ae01.alicdn.com/kf/Saeaa2042d24e4c9ba40accadf357e34e7.jpg https://ae01.alicdn.com/kf/Sbfa4c81946c7413eb82bec75091052d8p.jpg
- You stay powered with seamless solar-to-grid transfer and automatic switching, keeping essential loads running when sunlight dips or outages occur.

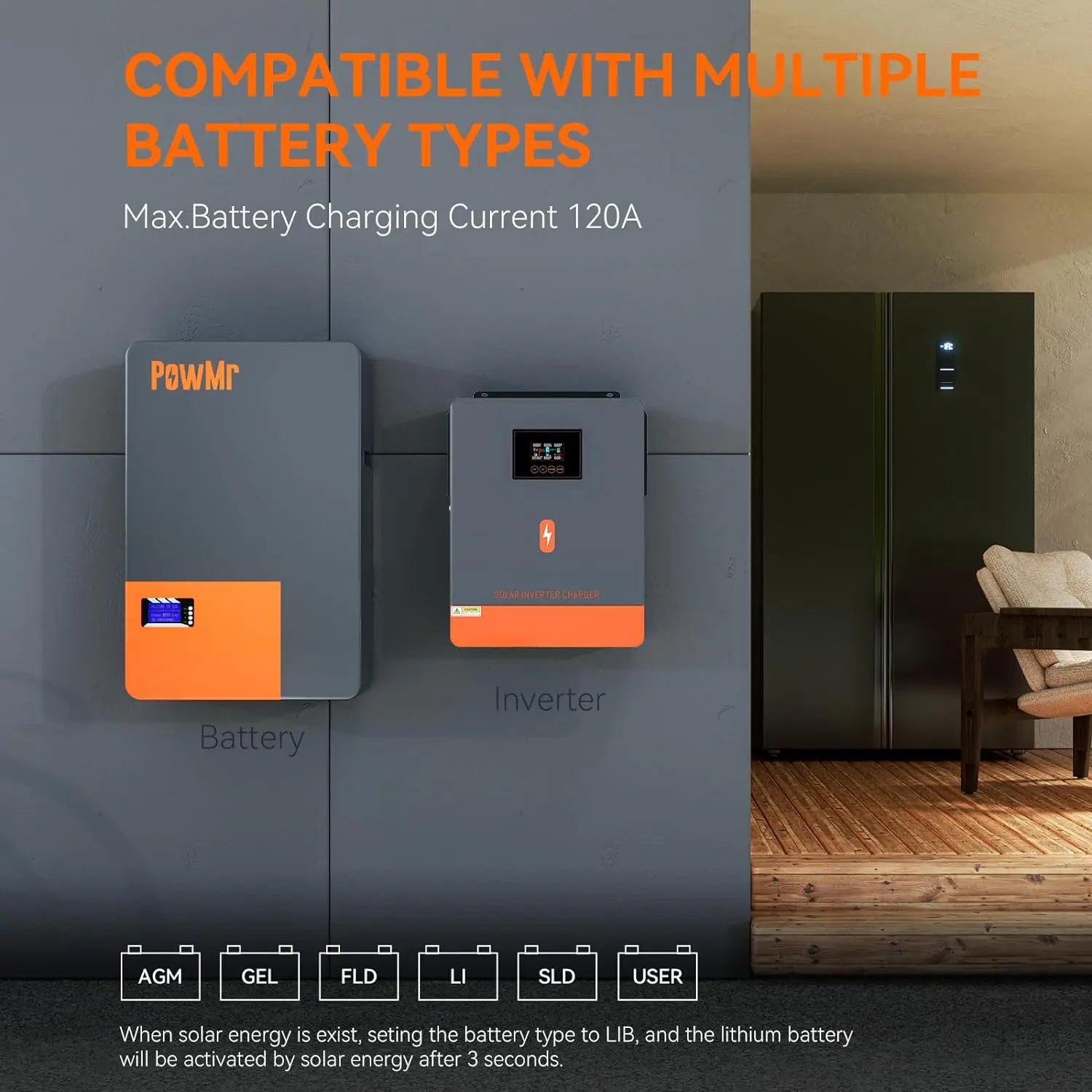

- You harvest more energy with a 120A MPPT charger that tracks the sun precisely, maximizing from your solar panels.

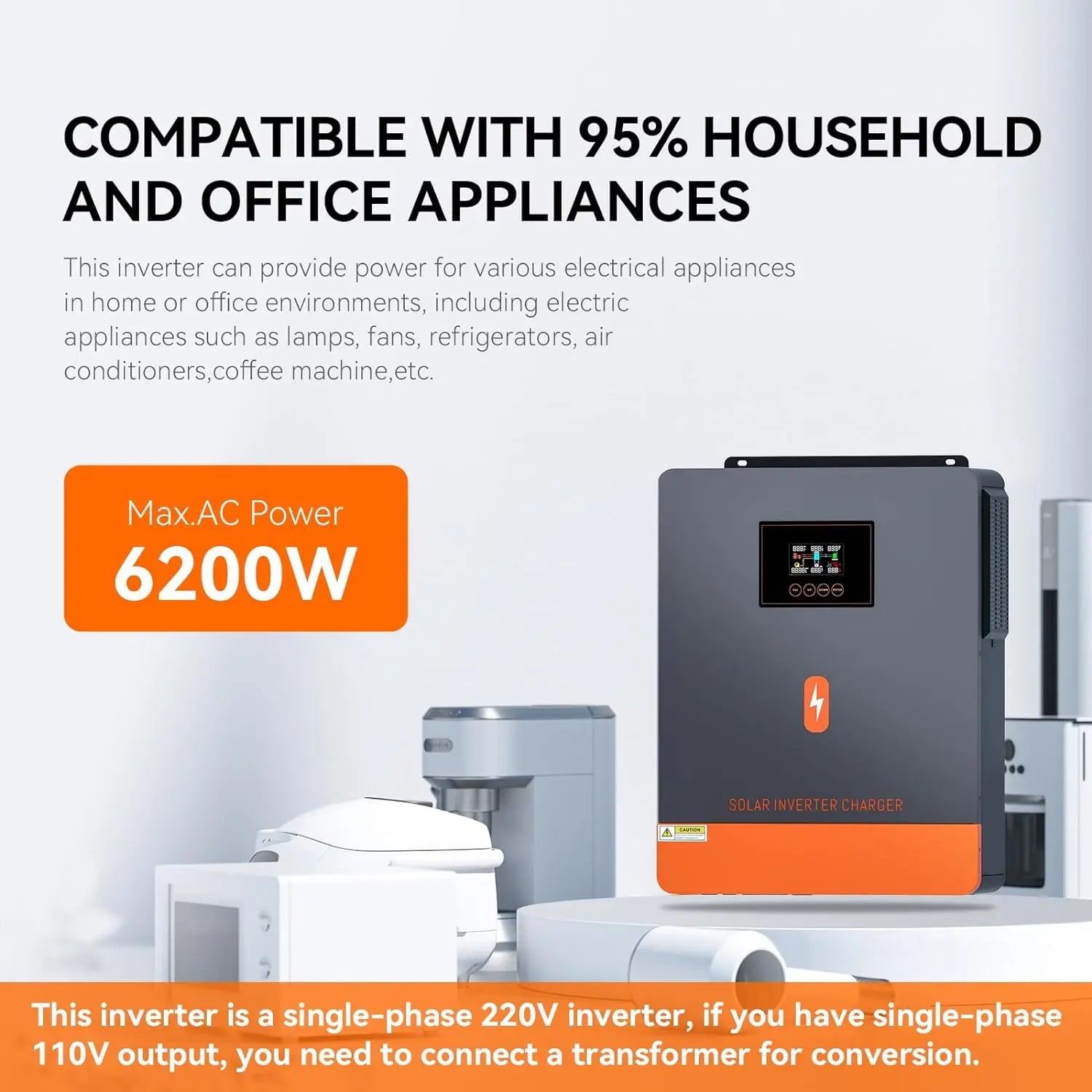

- You can run 24V or 48V systems to 230V pure sine output, ensuring compatible, clean power for your devices.
- You get a rugged, CE-certified design with EU stock readiness, delivering dependable performance in a compact footprint.
INVERTER MODEL |
4.2KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
Two Load Output Power | ||
Full Load |
4200W |
6200W |
Maximum Main Load |
4200W |
6200W |
Maximum Second Load(battery model) |
1400W |
2066W |
Main Load Cut off Voltage |
26VDC |
52VDC |
Main Load Return Voltage |
27VDC |
54VDC |
MPPT Solar Charging Mode | ||
Max. PV Array Power |
6200W |
6500W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60-450Vdc |
90-500Vdc |
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
120Amp |
|
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240 VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Nominal Output Current |
18.2A |
26.9A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
97% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10°C to 50°C |
|
Storage temperature |
-15°C~ 60℃ |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
