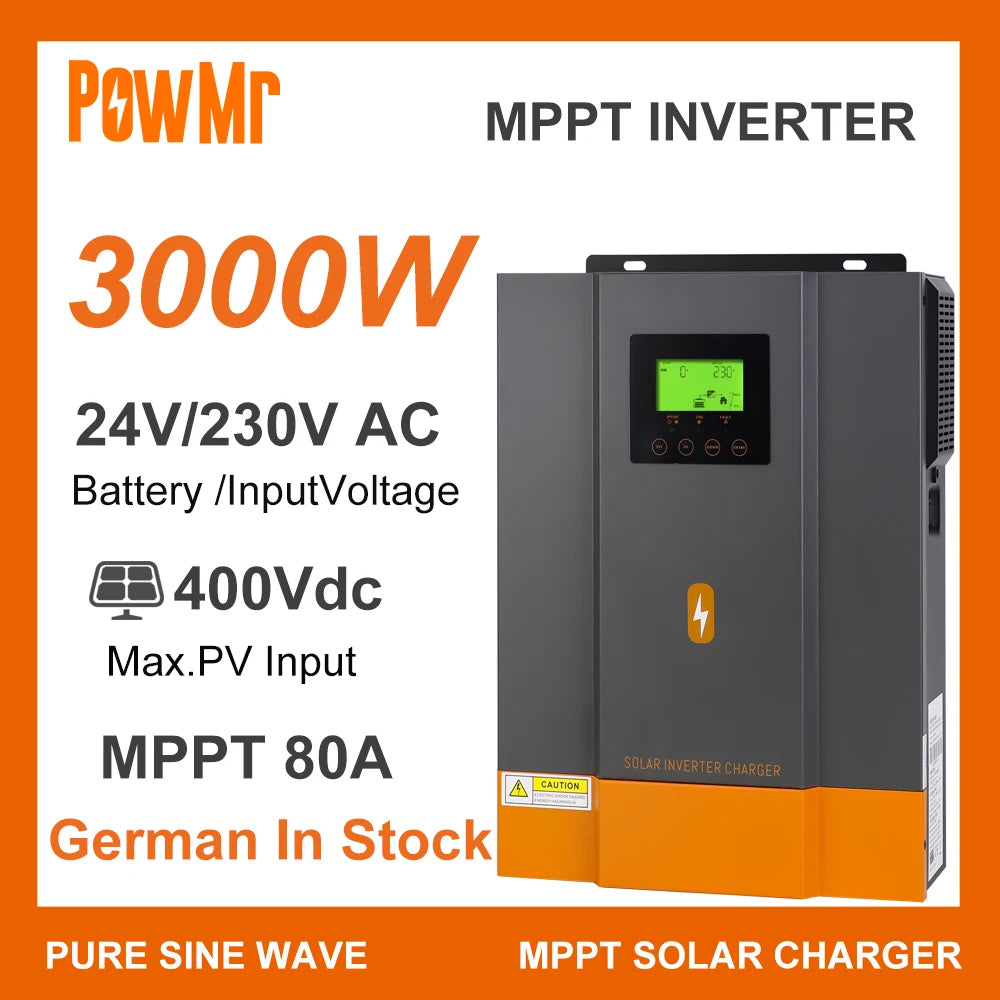

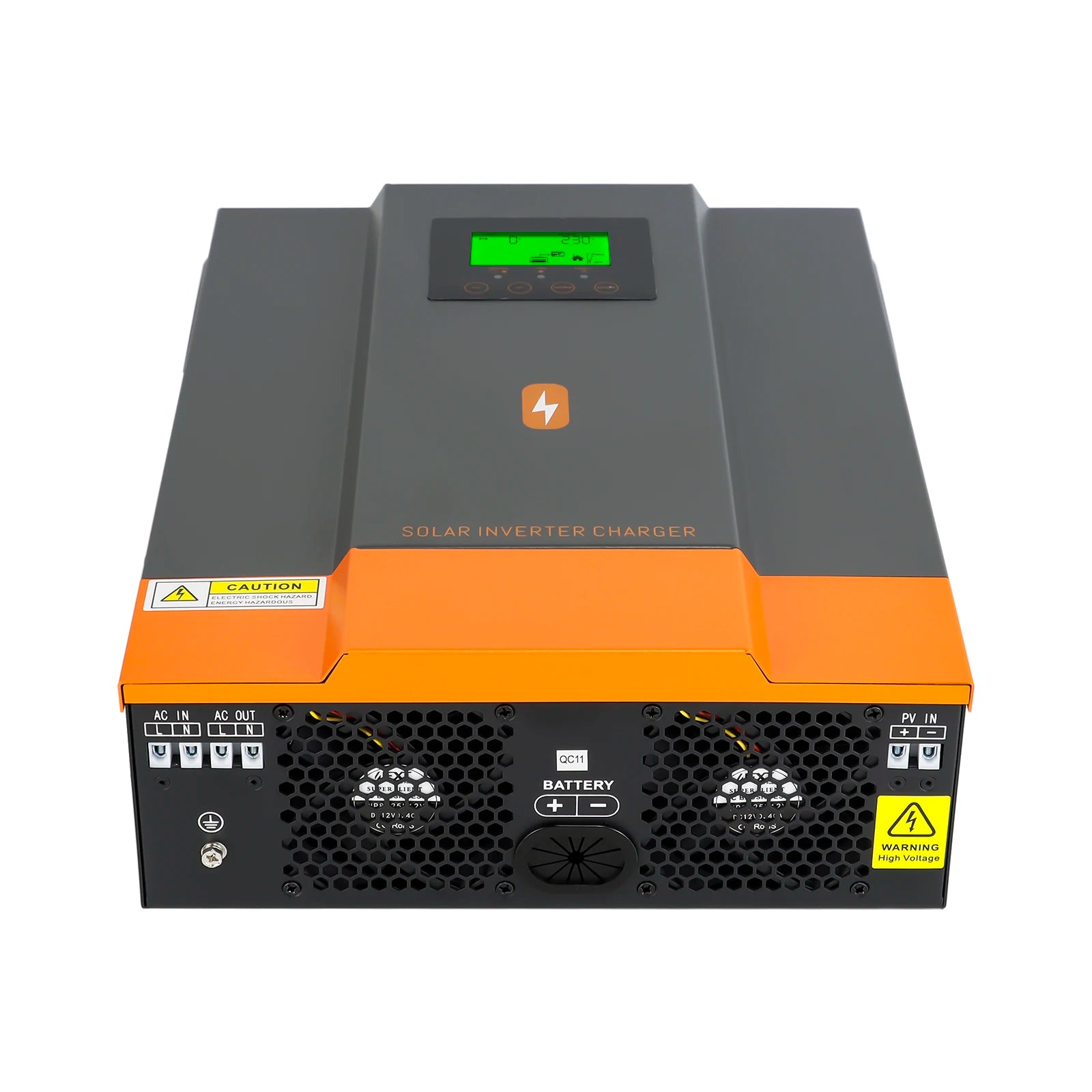

PowMr MPPT 80A Solar Charger 3000W Inverter DC 24V LCD
PowMr MPPT 80A Solar Charger 3000W Inverter DC 24V LCD
Couldn't load pickup availability
Power up with PowMr’s MPPT 80A Solar Charger and 3000W Inverter— a compact, high-efficiency hybrid that keeps your home off-grid or grid-tied, reliably.
- Experience efficient MPPT charging and up to 3000W of inverter output from a wide 24V DC input, supporting diverse solar setups for homes, cabins, and off-grid workshops.
- Stay in control with the built-in LCD display that shows real-time voltage, current, and load so you can optimize performance, even when you're away.
- CE-certified with no hazardous chemicals for safer operation and long-term reliability for everyday use.
- Compact and portable design at 348 x 270 x 95 mm and 6.5 kg fits neatly in tight spaces while delivering steady power in a compact footprint suitable for wall or rack mounting.
INVERTER MODEL |
1600W-12V |
3000W-24V |
Input Voltage Waveform |
Sinusoidal(utility or generator) |
|
Nominal Input Voltage |
230Vac |
|
Low Loss Voltage |
170Vac士/7V（UPS）； 90Vac±7V（Appliances） |
|
Low Loss Return Voltage |
180Vac±7V(UPS); 100Vac±7V(Appliances) |
|
High Loss Voltage |
280Vac±7V |
|
High Loss Return Voltage |
270Vac±7V |
|
Max AC Input Voltage |
300Vac |
|
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
|
Output Short Circuit Protection |
Circuit Breaker |
|
Efficiency(Line Mode) |
>95%(Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS); 20ms typical(Appliances) |
|
Inverter Mode Specifications | ||
INVERTER MODEL |
1600W-12V |
3000W-24V |
Rated Output Power |
2000VA/1600W |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Surge Capacity |
2*rated power for 5 seconds |
|
Nominal DC Input Voltage |
12Vdc |
24Vdc |
No Load Power Consumption |
<25W |
<35W |
Charge Mode Specifications | ||
Charging Algorithm |
3-Step |
|
AC Charging Current(Max) |
60Amp |
|
Floating Charging Voltage |
13.5Vdc |
27Vdc |
MPPT Solar Charging Mode | ||
Max.PV Array Power |
2000W |
3000W |
Nominal PV Voltage |
|240Vdc |
|
PV Array MPPT Voltage Range |
30~400Vdc |
|
Max.PV Array Open Circuit Voltage |
400Vdc |
|
Max Charging Current |
80Amp |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10℃ to 50℃ |
|
Storage Temperature |
-15℃- 60℃ |
|
